SWEEP SEALS
Which sweep seal to use on the bottom of a draughty door?

 THE PRODUCTS

PRODUCT COMPARISON
RP17
vs
RP5
vs
RP26
 SPECIFICATION
PRODUCT
remove_red_eye
OVERVIEW

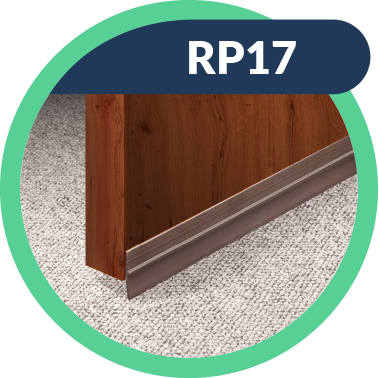

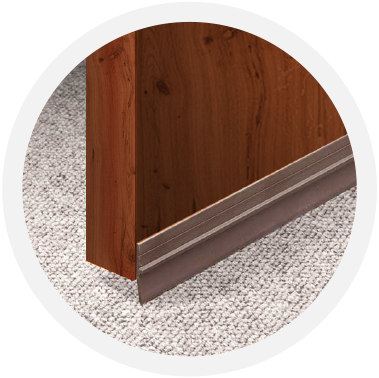

● Inexpensive, fully plastic, sweep seal

● Self adhesive

FEATURES

● Will treat gap up to 19mm

● Available in 915mm

● Available in Brown and › White/Grey

PERFORMANCE

● Light duty seal

● Not suitable for screw fixing

● Internal use only

PRODUCT
remove_red_eye
OVERVIEW

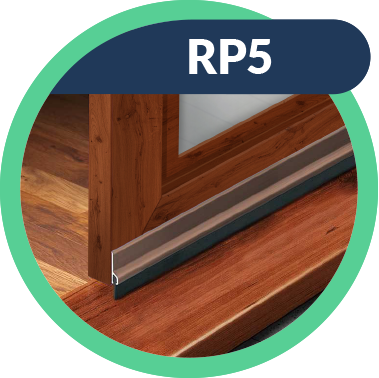

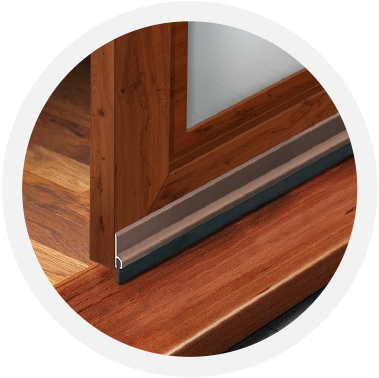

● Mid price

● Self adhesive

● Made from aluminium and rubber

● Ideal for security doors

● Will treat gap up to 19mm

FEATURES

● Available in 915mm

● Available in Silver, Bronze

● Suitable for French doors

● Easily cut with a hack saw

PERFORMANCE

● Somewhat conformable

● Can be used externally

● Can be screw fixed (screws and holes not provided)

● Use on timber doors

● Warranty: 2 years

PRODUCT
remove_red_eye
OVERVIEW

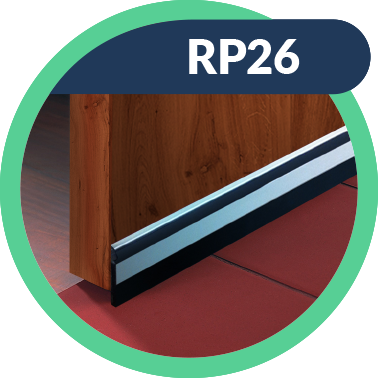

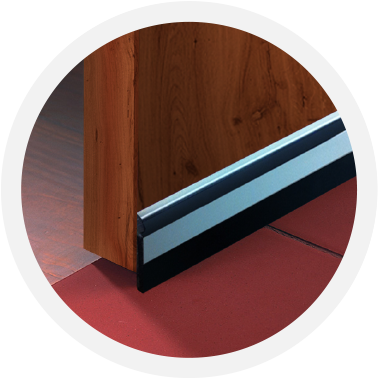

● Top of the line product

● Heavy duty seal

● Screw fixed only — not self adhesive

● Made from aluminium and thick rubber seal

● Will treat gap up to 20mm

FEATURES

● Available in 1000mm

● Available in Silver, Bronze

● Suitable for French doors

● Easily cut with a hack saw

● Suitable for use as

● external trailing edge seal on timber sliding doors

PERFORMANCE

● Can be fitted internally

● Can be used externally

● Machine cut for best results

● Must be screw fixed (screws supplied)

● For timber doors

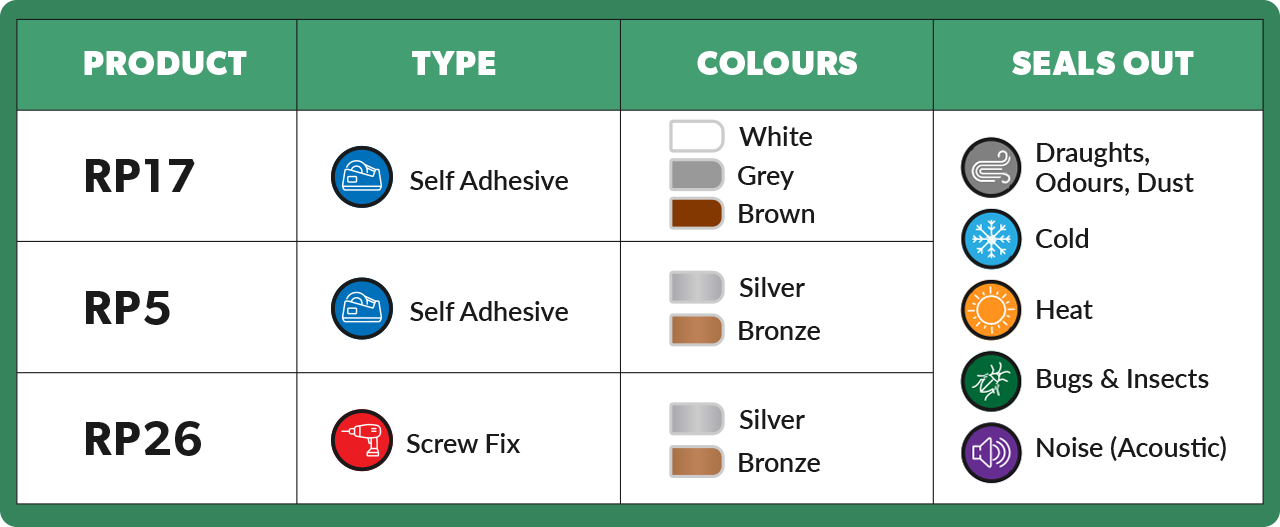

 AT-A-GLANCE
EXPLORE YOUR OPTIONS
Order online through our webshop.
 THE DO's & DONT's
check_circle
DO's

● Use on smooth surfaces only (not conformable)

● Cut with a hack saw

● Press out firmly when fitting

check_circle
DONT's

● Not suitable for rough surfaces

● Don’t use if it does not push up against a door step to make a seal

● Do not use on anything other than a smooth surface

● Do not use externally

check_circle
DO's

● Ensure sweep seal has a positive action against a surface (something to fit up to)

● Suitable for external screen doors

check_circle
DONT's

● Do not fit externally without screw fixings (BYO screws and holes)

check_circle
DO's

● Ensure sweep seal has a positive action against a surface (something to fit up to)

● Suitable for external doors

● Fit screws into the centre of slot to enable minor adjustments to be made

check_circle
DONT's

● Do not fit to mask a gap without something for the seal to press up against


 TOP 5 MISTAKES
filter_1

Fit to mask a gap without the seal to butt up against to make a complete seal. The door might look better but it does not fix the draught.

filter_2
Buying an RP17 when you need something more robust, longer lasting and aesthetically pleasing.
filter_3
Fitting a sweep seal that will interfere with floor coverings — typically the floor runner in a hallway (use a RP3 or RP35 instead).
filter_4

Use a sweep seal where the floor rises up as the door opens. The sweep seal with drag on the ground, making for an unpleasant “door experience”.

filter_5
Using a sweep seal on a sliding door — you need a brush!
*Videos available online.
