● Suitable for thermal issues (not acoustic)
● S Self adhesive
● Fit internally or externally (out of weather)
settings
PERIMETER SEALS
settings
WHICH PERIMETER SEAL SHOULD YOU USE AROUND YOUR DRAUGHTY DOORS?
settings
THE PRODUCTS
settings
DOOR DRAUGHTS SEALS
settings
For sides and top of a door
settings

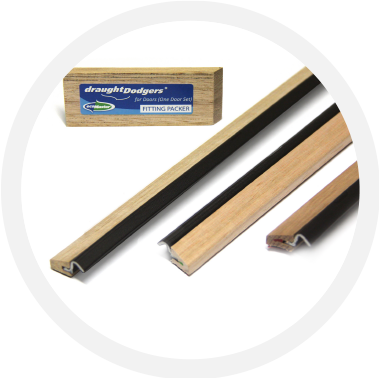

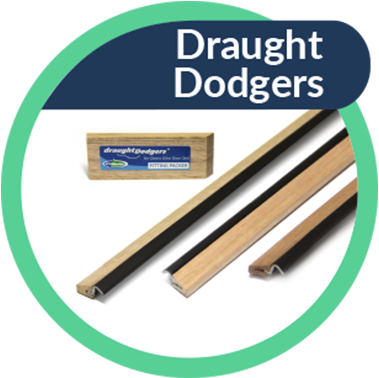

DRAUGHT DODGERS FOR DOORS
settings
vs
settings

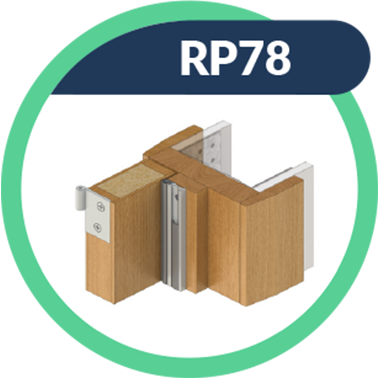

RP78
settings
vs
settings

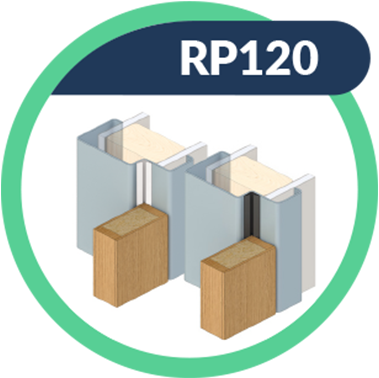

RP120
settings
vs
settings

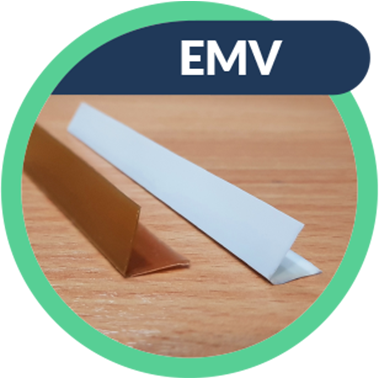

EMV
settings
SPECIFICATION
settings
settings
● Will treat gap up to 10mm
● Available in 2400mm, - White painted or Raw - Timber with tri-extruded seal
● Can be painted to suit decor
settings
● For hinged doors
● Not suitable for screw fixing
● Internal use only
● Warranty: 2 years when installed out of direct weather
settings

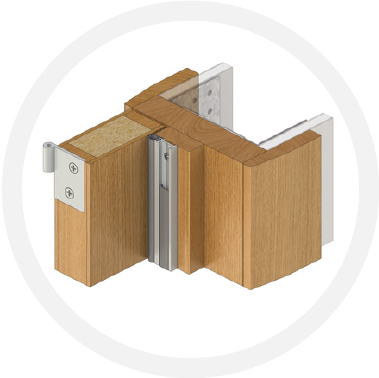

● Acoustic seal
● Screw fix
● Made from aluminium and silicon seal
● Ideal for hinged doors
settings
● Available in Silver, Bronze
● Suitable for French doors
● Easily cut with a hack saw
settings
● Not conformable
● Can be used externally
● Must be screw fixed
● For timber and aluminium doors
● Best if machine cut
● Warranty: 2 years
settings

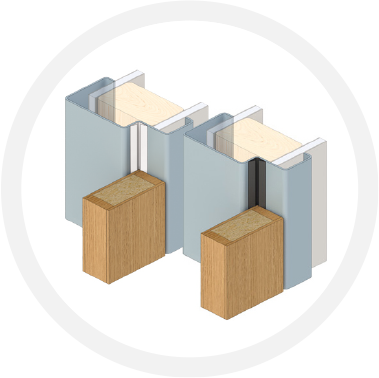

● Acoustic and smoke
● Full weather exposure
● Self adhesive
● Co-extruded hard and soft plastic
● Treats gap from 3mm to 5.5mm
settings
● Available in white, black
● Suitable for French doors
settings
● Relies on door being hung to specifically include the seal — not after market product
● Eventually the tangs break off, so it is least long lasting but the only seal suitable for smoke
● Can be used externally
● Hinge door
settings

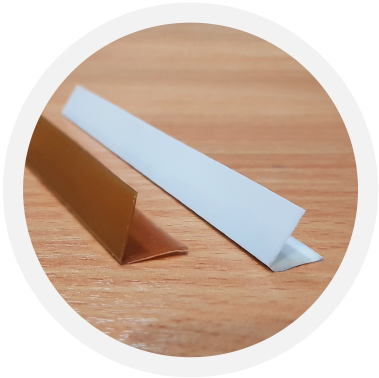

● Thermal product
● Low cost
● Good for beginner DIYers
● Treats gap from 2mm to 7mm
settings
● Available in 5.5m strips
● Available in White, Brown
● Plastic V seal
● Can be used as a Astragal between french doors or on hinged doors
settings
● Sheltered or full weather
● Can be used externally
● Hinge door
settings

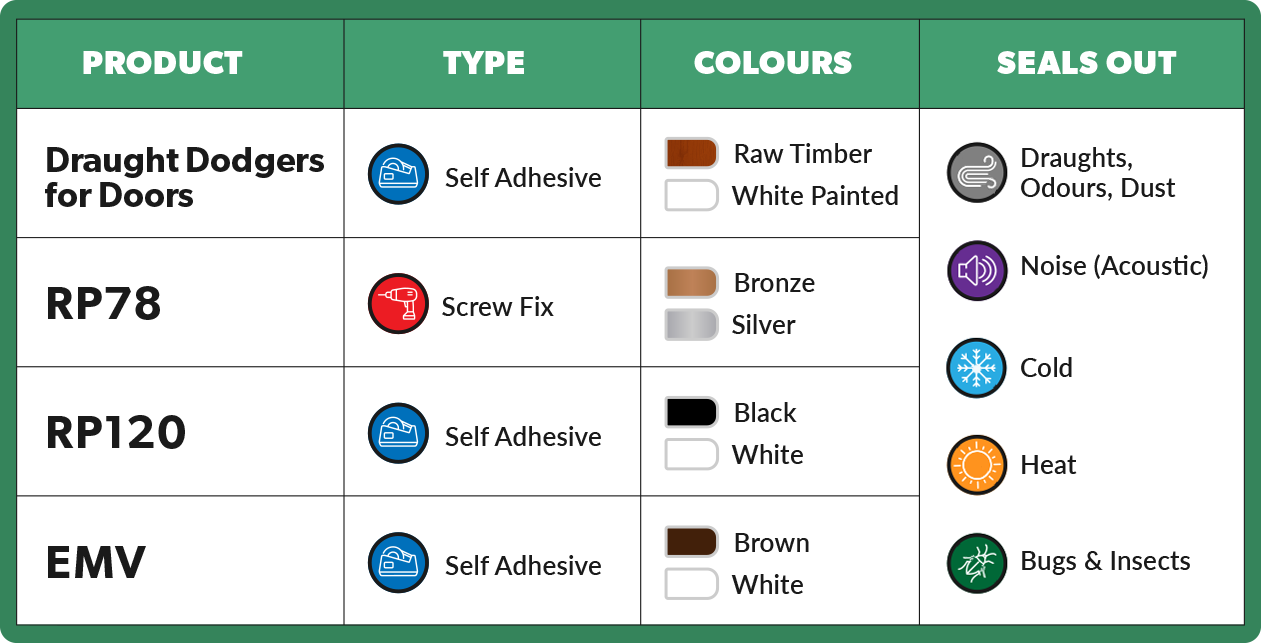

AT-A-GLANCE
settings
THE DO's & DONT's
check_circle
DO's
settings
● Can be conformable up to 10mm
● Cut be cut with a hack saw
● Press out firmly when fitting
DONT's
settings
● Do not fit in full weather
● Not suitable on pivot doors
check_circle
DO's
settings
● Carefully fit screws to centre of slot to allow for minor adjustment
● Order correct set for your door
● Pilot the door jam to minimise risk of accidentally screwing into the silicone
● Read the instructions carefully
● Take great care cutting the seal — it is easily torn and difficult to replace
DONT's
settings
● Do not machine cut with seal in place
● Do not fit hard up onto the door — you won’t be able to close the door!
check_circle
DO's
settings
● Ensure door has sufficient gap for the
● RP120 to fit. If it doesn’t fit, it isn’t going to fit
● Pull both liners out together while holding the seal firmly to the corner of the door rebate
DONT's
settings
● Do not try to install on existing door where one has not been installed before — replace existing product only, or where door has been hung to accommodate the seal
check_circle
DO's
settings
● Only suitable for smooth surfaces
● Must be at least 2mm of gap between edge of door and jam
● Maximum of 7mm gap
DONT's
settings
● Do not try to adhere to a rough surface — it will fall off
● Can’t be screw fixed
● Don’t use where the non adhesive side of the door is a rough surface — the door action will drag it off
● Don’t expect EMV to stop door obanging in the wind (use Draught Dodgers instead)
settings
TOP 6 MISTAKES
filter_1
Fitting EMV when there is insufficient clearance between the door and jamb causing the door to bind (difficult to open and close).
filter_2
Incorrect measurements!
filter_3
Fitting Draught Dodgers without the packer.
filter_4
Fitting Draught Dodgers without looking at the red/green dots to work out right and left.
filter_5
RP78 — the driver slipping off the screw and tearing a hole in the silicone seal — there is no silicone seal replacement.
filter_6
Incorrect sequence of installation:
* Draught Dodgers - install RP3 or RP35 first, then Draught Dodgers
* If fitting RP78, fit RP78 first, then Draught Excluder on bottom of door
* If fitting RP120 or EMV, the sequence of installation does not matter
* Draught Dodgers - install RP3 or RP35 first, then Draught Dodgers
* If fitting RP78, fit RP78 first, then Draught Excluder on bottom of door
* If fitting RP120 or EMV, the sequence of installation does not matter
filter_7
*Videos available online.
settings
PERIMETER SEALS
settings
For the sides and top of a door
settings
Information and design by:
