FRENCH DOORS DRAUGHT PROOFING KIT

 THE PRODUCT

OVERVIEW

• Known as French Doors / Combo Doors / Double Doors.
• They are beautiful but notoriously draughty!
• The French Door Draught Proofing Kit includes architectural quality self adhesive perimeter seals.
• The kit has been designed for those with limited DIY skills.

The important part of draught proofing French Doors is understanding which way the door opens. There are basically three different mechanisms:

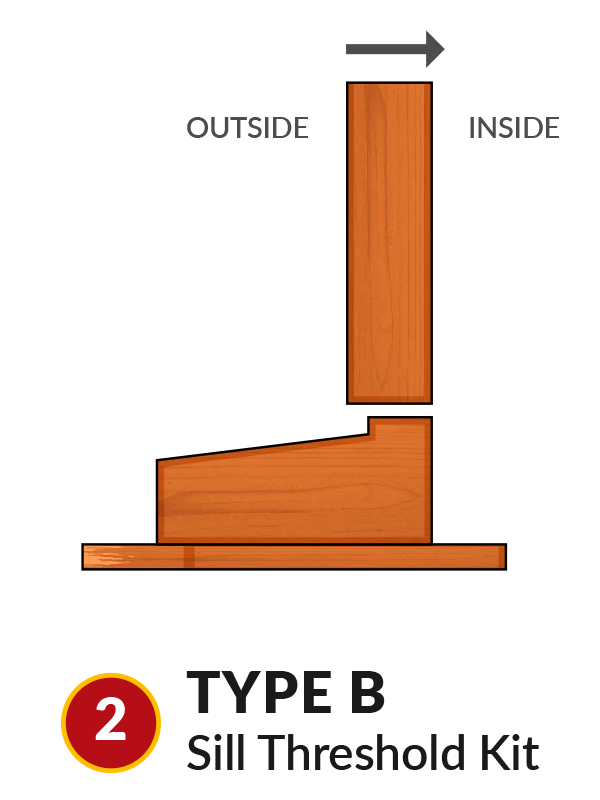

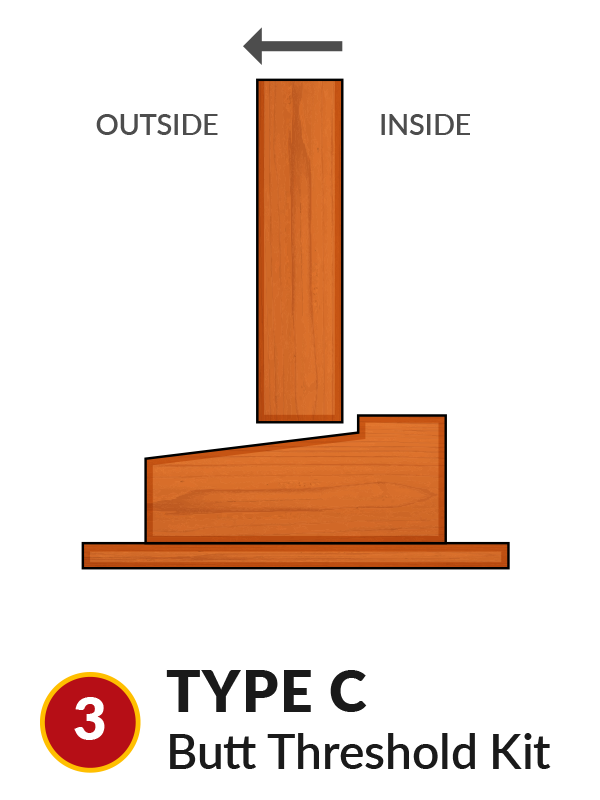

3 DIFFERENT MECHANISMS OF A FRENCH DOOR
 SILL vs BUTT THRESHOLD
FRENCH DOOR KIT — SILL THRESHOLD
COMPONENTS

● 1 x Draught Dodgers for Doors (One Door Kit)

● 2.4 meters of EMV

● 2 x RP5

● 2.4 metres of compressive weather seal

SEQUENCE FOR INSTALLATION

1. Fit Draught Dodgers to the perimeter of the doors

2. Fit EMV to the astragal (centre of door)

3. ONLY if inward opening doors, fit compressive seal to edge of the sill threshold

4. Fit RP5s to the bottom of the doors on the outside if outward opening or on the inside if inward opening

FRENCH DOOR KIT BUTT THRESHOLD
COMPONENTS

● 1 x Draught Dodgers for Doors (One Door Kit)

● 2.4 meters of EMV

● 2 x Draught Dodgers Brushes

SEQUENCE FOR INSTALLATION

1. Fit Draught Dodgers to the perimeter of the doors

2. Fit EMV to the astragal (centre of door)

3. Fit sections of Draught Dodgers with brush to the inside bottom of the doors

 SPECIFICATION

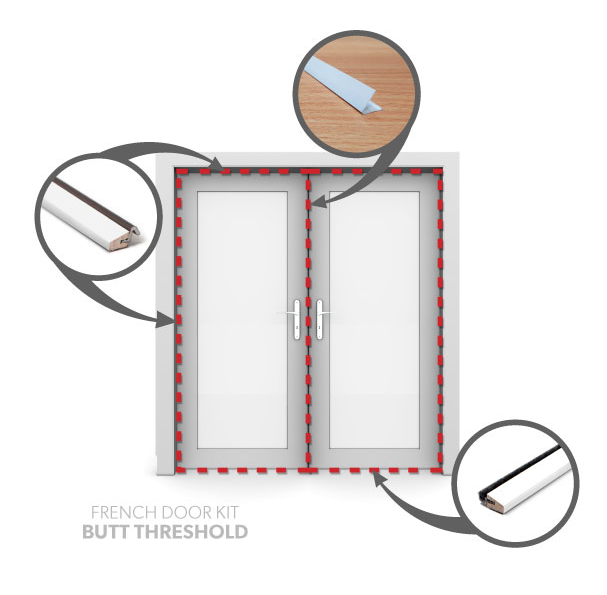

FRENCH DOOR KIT BUTT THRESHOLD
FRENCH DOOR KIT SILL THRESHOLD
FEATURES

● The kits are able to be fitted to most formats of French doors
* Perimeter gap around doors between 2mm and 10mm
* Centre gap between doors of 2mm to 7mm
* Bottom gap up to 14mm

● Components are long lasting components — provided the door is out of direct weather

● Components are easy to cut with a hack saw

PERFORMANCE

● If fitted externally, screw fix to ensure longevity

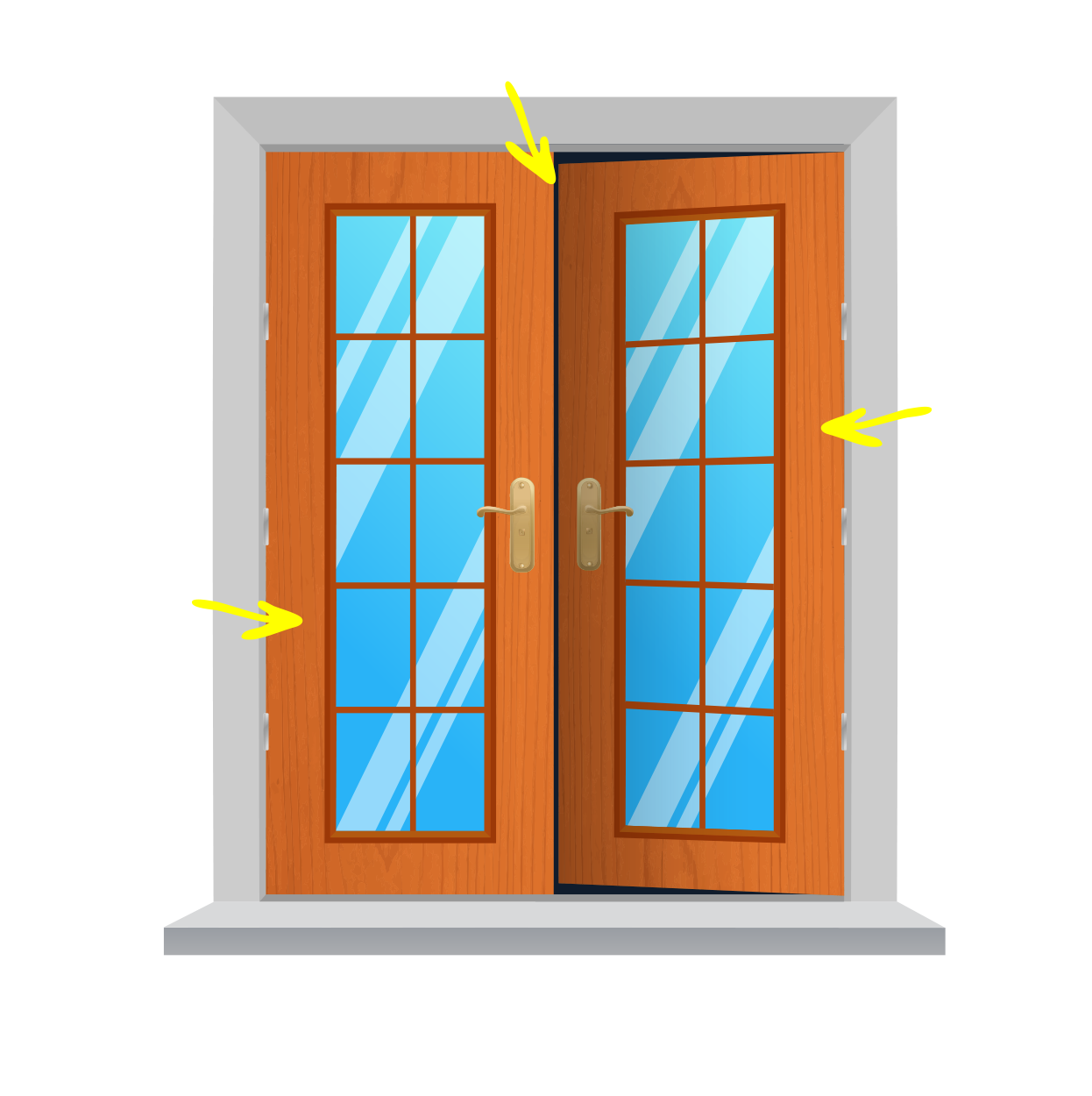

 ANATOMY OF A DOOR
GET YOUR OWN KIT!
Online through our webshop.
 THE DO's & DONT's
check_circle
DO's

● Cut the top Draught Dodger at the centre if the 2 doors don’t align

● Follow the sequence for installation

● Make sure they are in the RIGHT PLACE before committing the component to the door

check_circle
DONT's

● Don’t rush — make sure you have plenty of time

● Self adhesive components are good, but once they are on, they are on!

Don’t fit the draught dodger without using the fitting packer


 TOP 4 MISTAKES
filter_1

Incorrect measurement — measure twice, cut once

filter_2
Not using the compressive seal inward opening doors (Type B)
filter_3
Insufficient / incorrect surface preparation
filter_4

When there is a surface mounted bolt on an inward opening door the RP5 has to be cut to edge of bolt. There will be a small RP5 component on the other side of the bolt which will need to be screw fixed.

settings
PRO-TIP

Fit sections of Draught Dodgers with Brush to the inside bottom of the doors.

GET YOUR OWN KIT!
Order online through our webshop.
