● Good general use

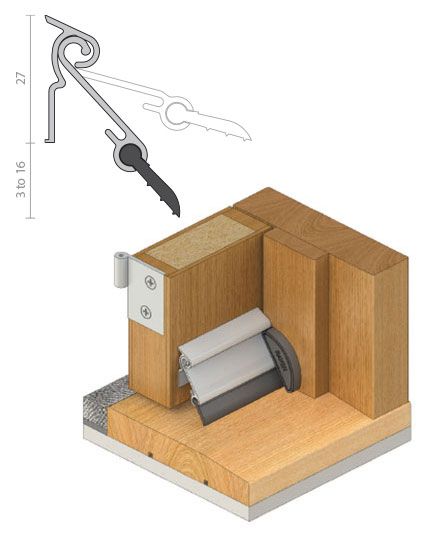

● Will treat gap 3mm to 16mm
settings
WHICH BOTTOM SEALS?
settings
WHICH BOTTOM SEALS TO USE WHEN FIXING DRAUGHTY DOORS?
settings
THE PRODUCTS
settings
AUTOMATIC BOTTOM DRAUGHT EXCLUDER
settings
Product Comparison
settings
RP3
settings
vs
settings

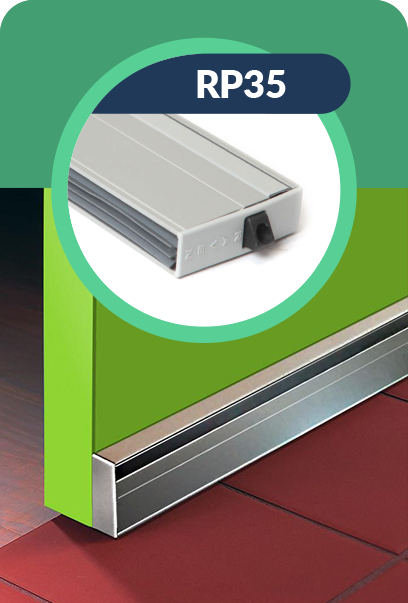

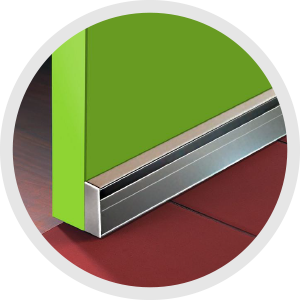

RP35
settings
SPECIFICATION
settings
settings
● Available in 915mm Bronze, Silver and Gold
● Available in 1220mm Bronze and Silver
● Somewhat comformable around uneven threshold (e.g. worn stone step)
● Not suitable for French Doors
settings
● Use on hinged timber doors
● With reasonable use, will last 5 years
● Warranty: 2 years against defects
settings

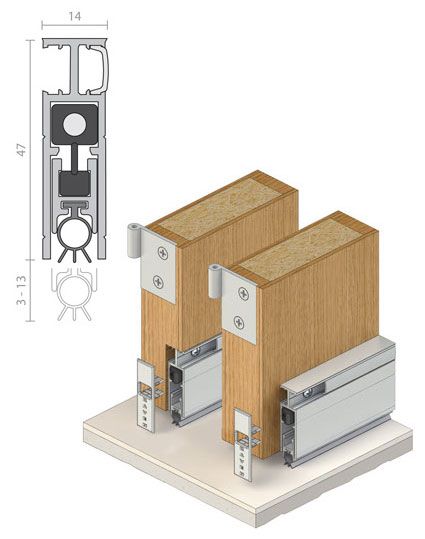

● Higher end use
● Robust!
● Will treat gap up to 13 mm
settings
● Available in Silver and Bronze
● Available in 600 / 820 / 920 / 1070 / 1220 mm
● Can be fitted to aluminium hinged doors but requires packing with double sided tape (2mm)
● Suitable for French doors
● Requires above beginner skill level to install
settings
● Use on hinged timber doors
● Will last for lifetime of the door
● Warranty: 2 years against defects
settings

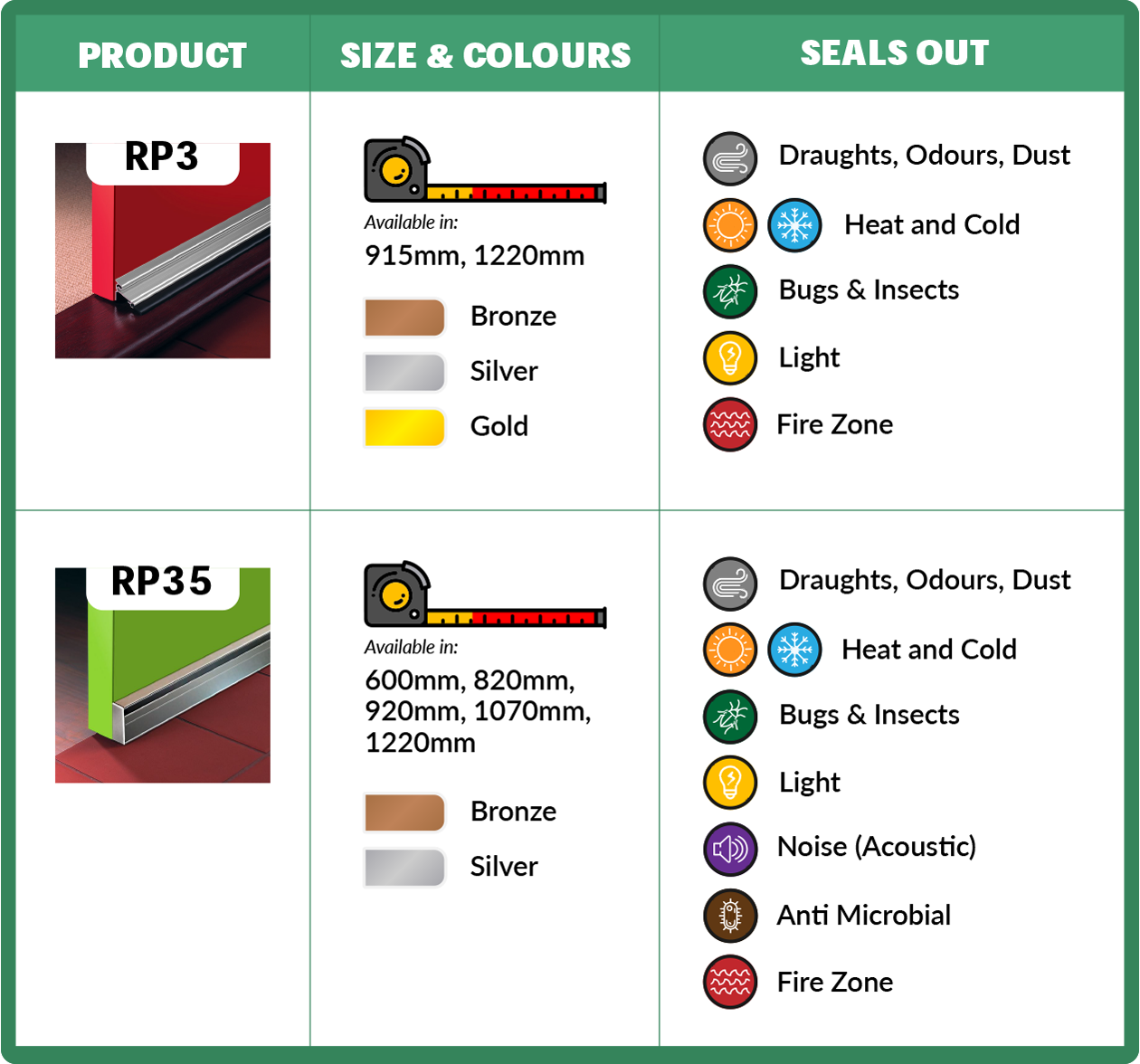

AT-A-GLANCE
settings
THE DO's & DONT's
check_circle
DO's
settings
● Suitable for hollow core doors
● Can be cut with a hack saw
● Pro Tip: Cut both ends to leave Raven label in middle of door (or remove label)
DONT's
settings
● Not suitable for aluminium doors
● Do not fit to French doors
● Fitting to a door that is not straight can jam both RP3 and RP35. The mechanism may jam under certain weather conditions (e.g. direct sun strike or rain)
● Do not follow the instructions included in the packet – ecoMaster instructions are different!!! Watch our video.
check_circle
DO's
settings
● Buy correct size for your application (bigger rather than smaller)
● Use Draught Dodgers packers to set appropriate height and parallel to threshold
● Pro Tip: Machine cut – do not use hack saw! Trim the drop down seal by an extra 1mm
DONT's
settings
● Not suitable for doors with non flat tread – the seal is not conformable around thresholds that are not flat
● Do not fit to hollow core doors
settings
TOP 5 MISTAKES
filter_1
Not leaving enough clearance on latch side of RP3.
The rubber seal will hit the door jamb and damage the seal.
filter_2
Do not fit P35s to hollow core doors.
filter_3
Do not fit RP35s hard down on tread.
Fit 7mm off the threshold.
Fit 7mm off the threshold.
filter_4
Getting wrong sized RP35 and cutting out the mechanism.*
filter_5
Fitting RP3 too low down on the door causing it to
scrape as the door opens.
scrape as the door opens.
filter_7
*Videos available online.
settings
AUTOMATIC BOTTOM DRAUGHT EXCLUDER
settings
A comparison between RP3 and RP35 Door Draught Excluders
